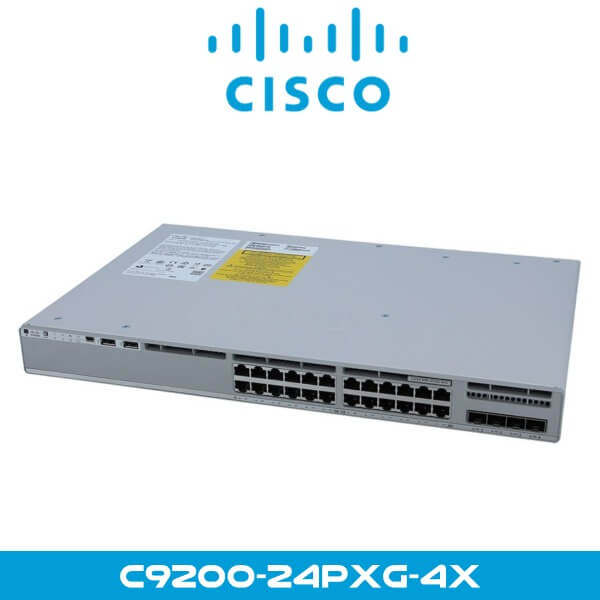

Cisco C9200-24PXG-4X Multigigabit PoE+ Switch Dubai

The Cisco C9200-24PXG-4X represents the cutting edge of wireless-optimized networking technology, specifically engineered to support the demanding requirements of Wi-Fi 6 and Wi-Fi 6E deployments across Dubai’s advanced business environments. This innovative 24-port switch combines multigigabit Ethernet capabilities with comprehensive PoE+ power delivery, creating the perfect foundation for organizations in Abu Dhabi implementing next-generation wireless networks that require both exceptional bandwidth and reliable power for high-performance access points.

Featuring 8 multigigabit ports capable of 100M/1G/2.5G/5G/10G speeds and 16 additional Gigabit PoE+ ports, the C9200-24PXG-4X provides the precise combination of high-speed connectivity and power delivery that Wi-Fi 6/6E access points require for optimal performance. This specialized configuration makes it the ideal choice for organizations across the UAE seeking to maximize their wireless network investments while ensuring future compatibility with emerging wireless technologies.

Specifications:

• Switch Type: Layer 2 Managed Multigigabit PoE+ Access Switch

• Port Configuration: 24 x 10/100/1000 Ethernet PoE+ ports (8 mGig ports up to 10G, 16 ports up to 1G)

• Multigigabit Ports: 8 x 100M/1G/2.5G/5G/10G PoE+ ports

• Standard Ports: 16 x 10/100/1000 PoE+ ports

• PoE+ Power Budget: 740W total, 30W per port

• PoE+ Standard: IEEE 802.3at compliant

• Uplink Ports: 4 x 1/10G SFP+ ports

• Switching Capacity: 128 Gbps

• Forwarding Rate: 95.24 Mpps (million packets per second)

• MAC Address Table: 16,000 entries

• VLAN Support: Up to 4,094 VLANs

• Stacking Technology: StackWise-160 (up to 8 units, 160 Gbps stack bandwidth)

• Buffer Memory: 1.5 MB per port

• Power Consumption: Maximum 85W (switch only), 825W total with full PoE load

• Power Supply: PWR-C6-600WAC (600W AC)

• Dimensions (H x W x D): 1.73 x 17.5 x 13.8 inches (4.4 x 44.5 x 35.0 cm)

• Weight: 8.8 lbs (4.0 kg)

• Operating Temperature: 32°F to 113°F (0°C to 45°C)

• Operating Humidity: 10% to 85% non-condensing

• MTBF: 613,482 hours

• Fans: Field-replaceable redundant fans

• Management: Web GUI, CLI, SNMP, Cisco DNA Center

• Security Features: MACsec encryption, 802.1X authentication, device fingerprinting

• QoS: 8 queues per port, DiffServ marking, traffic shaping, voice VLAN

• Standards Compliance: IEEE 802.3, 802.3u, 802.3ab, 802.3at, 802.3ae, 802.1Q, 802.1p

• Routing Table: Up to 1,000 IPv4 routes, 1,000 IPv6 routes

• PoE Features: Perpetual PoE, power prioritization, intelligent power management

• Multigigabit Support: Auto-negotiation 100M/1G/2.5G/5G/10G speeds

• Wi-Fi Optimization: Optimized for Wi-Fi 6/6E access points

• Warranty: Cisco Limited Lifetime Hardware Warranty
