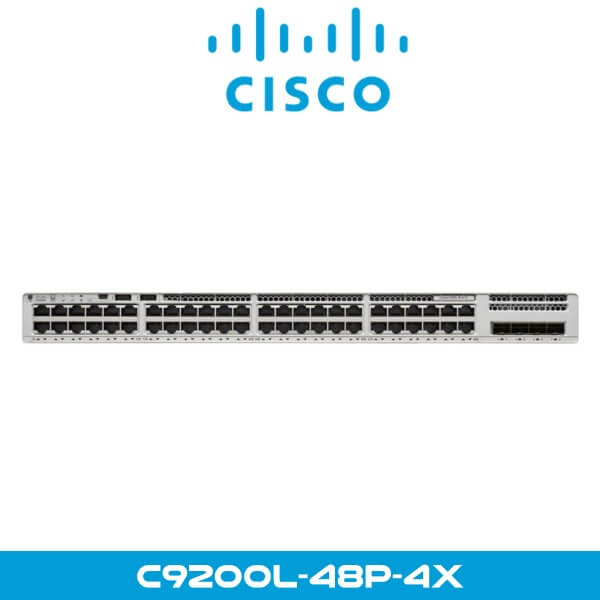

Cisco C9200L-48P-4X Ultimate PoE+ Density Switch Dubai

The Cisco C9200L-48P-4X represents the pinnacle of cost-effective high-density networking, combining 48 PoE+ ports with 10 Gigabit fixed uplinks to create the ultimate solution for organizations in Dubai that require maximum powered device connectivity and high-performance uplinks while maintaining budget efficiency. This advanced switch provides comprehensive power delivery across all ports with exceptional bandwidth capabilities, making it ideal for large-scale deployments across Abu Dhabi that demand both extensive PoE+ connectivity and superior network performance.

Specifications:

• Switch Type: Layer 2 Managed High-Density PoE+ 10G Fixed Uplink Access Switch

• Port Configuration: 48 x 10/100/1000 Ethernet PoE+ ports

• PoE+ Power Budget: 1440W total, 30W per port

• PoE+ Standard: IEEE 802.3at compliant

• Fixed Uplink Ports: 4 x 1/10G SFP+ fixed uplinks

• Switching Capacity: 176 Gbps

• Forwarding Rate: 130.95 Mpps (million packets per second)

• MAC Address Table: 16,000 entries

• VLAN Support: Up to 4,094 VLANs

• Stacking Technology: StackWise-80 (up to 8 units, 80 Gbps stack bandwidth)

• Buffer Memory: 1.5 MB per port

• Power Consumption: Maximum 120W (switch only), 1560W total with full PoE load

• Power Supply: PWR-C5-1KWAC (1000W AC) – requires dual power supplies for full PoE

• Dimensions (H x W x D): 1.73 x 17.5 x 13.8 inches (4.4 x 44.5 x 35.0 cm)

• Weight: 9.0 lbs (4.1 kg)

• Operating Temperature: 32°F to 113°F (0°C to 45°C)

• Operating Humidity: 10% to 85% non-condensing

• MTBF: 613,482 hours

• Fans: Fixed redundant fans

• Management: Web GUI, CLI, SNMP, Cisco DNA Center

• Security Features: MACsec encryption, 802.1X authentication, device fingerprinting, threat detection

• QoS: 8 queues per port, DiffServ marking, traffic shaping, voice VLAN, uplink optimization

• Standards Compliance: IEEE 802.3, 802.3u, 802.3ab, 802.3at, 802.3ae, 802.1Q, 802.1p

• Routing Table: Up to 1,000 IPv4 routes, 1,000 IPv6 routes

• PoE Features: Intelligent power management, device fingerprinting

• SFP+ Support: 1G/10G SFP+ transceivers (copper, multimode, single-mode fiber)

• Design: Fixed 10G uplink, high-density PoE+ cost-optimized architecture

• Port Density: 48 PoE+ ports with 10G uplinks in 1U form factor

• Warranty: Cisco Limited Lifetime Hardware Warranty
