Description

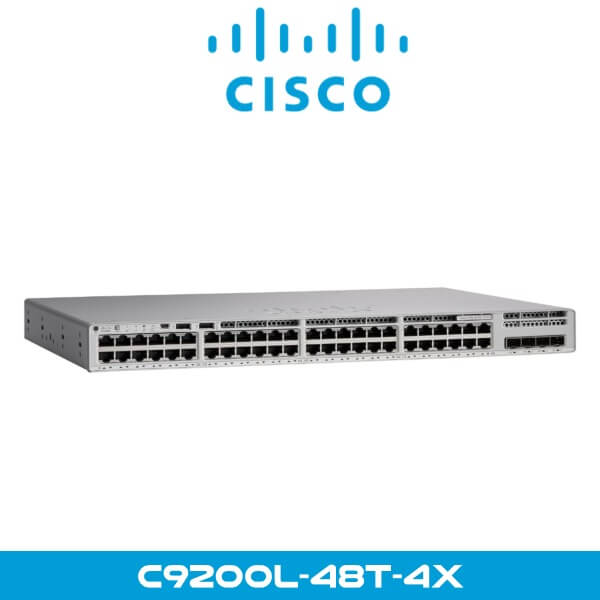

Cisco C9200L-48T-4X High-Performance Density Switch Dubai

The Cisco C9200L-48T-4X delivers the ultimate combination of high port density and 10 Gigabit performance in a cost-effective fixed uplink design, making it the ideal choice for organizations in Dubai that require extensive connectivity with high-speed uplinks while maintaining budget efficiency. This advanced 48-port switch with four fixed 1/10 Gigabit uplinks provides exceptional value for businesses across Abu Dhabi implementing high-density networks that demand superior bandwidth capabilities.

Specifications:

• Switch Type: Layer 2 Managed High-Density 10G Fixed Uplink Access Switch

• Port Configuration: 48 x 10/100/1000 Ethernet ports

• Fixed Uplink Ports: 4 x 1/10G SFP+ fixed uplinks

• Switching Capacity: 176 Gbps

• Forwarding Rate: 130.95 Mpps (million packets per second)

• MAC Address Table: 16,000 entries

• VLAN Support: Up to 4,094 VLANs

• Stacking Technology: StackWise-80 (up to 8 units, 80 Gbps stack bandwidth)

• Buffer Memory: 1.5 MB per port

• Power Consumption: Maximum 120W

• Power Supply: PWR-C5-125WAC (125W AC)

• Dimensions (H x W x D): 1.73 x 17.5 x 13.8 inches (4.4 x 44.5 x 35.0 cm)

• Weight: 8.8 lbs (4.0 kg)

• Operating Temperature: 32°F to 113°F (0°C to 45°C)

• Operating Humidity: 10% to 85% non-condensing

• MTBF: 613,482 hours

• Fans: Fixed redundant fans

• Management: Web GUI, CLI, SNMP, Cisco DNA Center

• Security Features: MACsec encryption, 802.1X authentication, ACLs, threat detection

• QoS: 8 queues per port, DiffServ marking, traffic shaping, uplink optimization

• Standards Compliance: IEEE 802.3, 802.3u, 802.3ab, 802.3ae, 802.1Q, 802.1p

• Routing Table: Up to 1,000 IPv4 routes, 1,000 IPv6 routes

• SFP+ Support: 1G/10G SFP+ transceivers (copper, multimode, single-mode fiber)

• Design: Fixed 10G uplink, high-density cost-optimized architecture

• Port Density: 48 ports with 10G uplinks in 1U form factor

• Warranty: Cisco Limited Lifetime Hardware Warranty
