Description

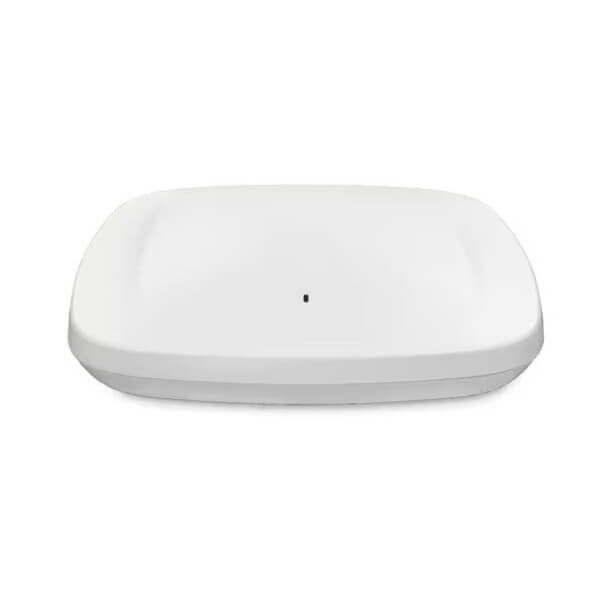

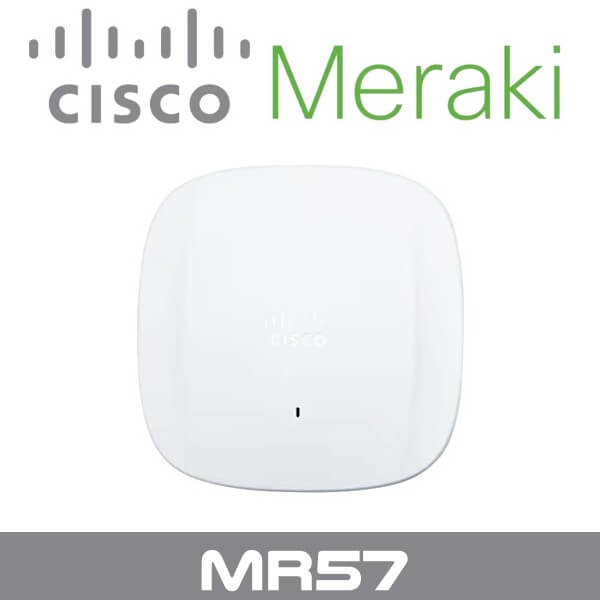

Cisco Meraki MR57 Wi-Fi 6E Access Point

The Cisco Meraki MR57 represents the pinnacle of wireless networking technology, delivering unprecedented performance and reliability for enterprises across Dubai’s rapidly evolving digital landscape. As businesses in the UAE continue to embrace digital transformation, the demand for robust, high-performance wireless infrastructure has never been greater. The MR57 stands as a testament to Cisco’s commitment to innovation, offering ultra-high-performance Wi-Fi 6E capabilities that redefine what’s possible in wireless connectivity.

This revolutionary access point brings together cutting-edge technology and intelligent design to create a wireless solution that meets the most demanding requirements of modern enterprises in Dubai. With its tri-band 802.11ax-compatible architecture, the MR57 delivers exceptional performance across the 2.4 GHz, 5 GHz, and 6 GHz frequency bands, ensuring optimal connectivity for diverse device ecosystems. The integration of advanced features such as dedicated security radios, Bluetooth Low Energy capabilities, and cloud-based management makes the MR57 an ideal choice for organizations seeking to future-proof their wireless infrastructure while maintaining the highest standards of security and performance.

Revolutionary Wi-Fi 6E Technology for Dubai’s Enterprise Market

The Cisco Meraki MR57 introduces groundbreaking Wi-Fi 6E technology to Dubai’s enterprise market, leveraging the newly available 6 GHz spectrum to deliver unparalleled wireless performance. This innovative access point provides a maximum aggregate frame rate of 7.78 Gbps across its tri-radio configuration, with the 6 GHz radio capable of delivering up to 4,804 Mbps, the 5 GHz radio supporting up to 2,402 Mbps, and the 2.4 GHz radio providing up to 574 Mbps. This exceptional performance makes the MR57 particularly well-suited for high-density environments common in Dubai’s bustling business districts, where multiple devices compete for bandwidth and reliable connectivity is paramount.

The software-configurable flex radio architecture represents a significant advancement in wireless technology, allowing organizations in Abu Dhabi to toggle between dual 5 GHz configuration and true tri-band operation. This flexibility ensures that businesses can optimize their wireless networks based on specific requirements and environmental conditions. The tri-band configuration unlocks access to the pristine 6 GHz frequency range, providing additional channels that significantly reduce interference and noise from legacy devices while increasing overall throughput.

For enterprises operating in the UAE’s competitive business environment, the MR57’s advanced 802.11ax compatibility delivers substantial improvements in efficiency and performance. The implementation of Multi-User Multiple Input Multiple Output (MU-MIMO) technology with 4×4:4 spatial streams across all frequency bands enables simultaneous communication with multiple devices, dramatically improving network efficiency in high-density scenarios. This capability is particularly valuable in Dubai’s modern office environments, where employees rely on multiple connected devices throughout their workday.

Advanced Security and Management Capabilities

Security remains a top priority for organizations across Dubai, and the Cisco Meraki MR57 addresses these concerns with comprehensive, enterprise-grade security features. The dedicated fourth radio provides continuous 24×7 real-time Wireless Intrusion Detection System (WIDS) and Wireless Intrusion Prevention System (WIPS) capabilities, ensuring that potential security threats are identified and mitigated before they can impact network operations. This dedicated security radio operates independently of client-serving radios, ensuring that security monitoring never compromises network performance or user experience.

The integration of WPA3 support and 192-bit encryption provides the highest levels of wireless security available, meeting the stringent security requirements of enterprises operating in Abu Dhabi’s financial and government sectors. Advanced Encryption Standard (AES) hardware-based encryption ensures that all wireless communications remain secure, while Enterprise authentication with 802.1X and Active Directory integration provides seamless integration with existing security infrastructure.

Cloud-based management through the Meraki dashboard revolutionizes how organizations in the UAE approach wireless network administration. The intuitive browser-based interface enables rapid deployment without requiring extensive training or specialized certifications, making it possible to deploy access points at remote locations across Dubai in a matter of minutes. The automated RF optimization capabilities continuously analyze network performance and environmental conditions, automatically adjusting channel selection, transmit power, and client connection settings to maintain optimal performance under even the most challenging RF conditions.

Enterprise-Grade Performance and Reliability

The Cisco Meraki MR57 delivers enterprise-grade performance that meets the demanding requirements of modern businesses in Dubai. The dual 5 Gbps multigigabit Ethernet ports provide exceptional connectivity options, supporting high availability configurations and link aggregation for maximum redundancy and performance. This dual-port design ensures that organizations can maintain continuous connectivity even in the event of a primary connection failure, providing the reliability that mission-critical applications require.

Power over Ethernet Plus (PoE+) and 802.3bt compliance ensures flexible deployment options across diverse environments in Abu Dhabi. The access point’s power consumption ranges from 30W to 40W, with a minimum requirement of 30W when using PoE+, making it suitable for deployment in locations where power infrastructure may be limited. The USB 2.0 host interface with 9.5W power budget provides additional connectivity options for specialized applications and future expansion capabilities.

The integrated Bluetooth Low Energy beacon and scanning radio opens new possibilities for location-aware applications and customer engagement strategies. This fifth radio operates independently of the wireless networking functions, enabling organizations in the UAE to deploy innovative location-based services without impacting network performance. The Bluetooth capabilities support both beacon functionality for proximity-based applications and scanning capabilities for asset tracking and analytics.

Optimized for High-Density Deployments

Dubai’s modern office environments often feature high-density deployments where numerous devices compete for wireless resources. The Cisco Meraki MR57 excels in these challenging environments through its advanced antenna design and sophisticated radio frequency management capabilities. The integrated omni-directional antennas provide optimal coverage patterns with 4.5 dBi gain at 2.4 GHz, 5.5 dBi gain at 5 GHz, and 5.5 dBi gain at 6 GHz, ensuring consistent performance across diverse deployment scenarios.

Enhanced transmit power and receive sensitivity allow the MR57 to support higher client densities than typical enterprise-class access points, resulting in better performance for more clients from each access point. This capability is particularly valuable in Abu Dhabi’s conference centers, educational institutions, and large corporate offices where hundreds of devices may be connected simultaneously.

The implementation of Orthogonal Frequency Division Multiple Access (OFDMA) technology further enhances the access point’s ability to serve multiple clients efficiently. OFDMA enables the MR57 to divide each channel into smaller sub-channels, allowing multiple devices to transmit simultaneously and reducing latency for time-sensitive applications. This technology is especially beneficial for voice and video applications that require consistent, low-latency connectivity.

Application-Aware Traffic Management

Modern enterprises in Dubai rely on diverse applications with varying performance requirements, from mission-critical business applications to recreational content streaming. The Cisco Meraki MR57 addresses these diverse needs through its integrated layer 7 packet inspection, classification, and control engine. This sophisticated traffic management system enables administrators to configure Quality of Service (QoS) policies based on application type, ensuring that critical business applications receive priority while managing bandwidth consumption for less critical traffic.

The application-aware traffic shaping capabilities can be implemented at multiple levels, including per network, per SSID, per user group, or per individual user, providing maximum flexibility and control. This granular control is particularly valuable for organizations in the UAE that need to balance employee productivity with network resource management. Voice and video optimization features ensure that collaboration tools and communication applications receive the priority they need for optimal performance.

Industry-standard QoS features are built-in and easy to configure, including Wireless Multimedia (WMM) access categories, 802.1p, and Differentiated Services Code Point (DSCP) standards support. These features ensure that important applications receive appropriate prioritization not only on the MR57 but throughout the network infrastructure. Unscheduled Automatic Power Save Delivery (U-APSD) and Target Wait Time features in 802.11ax clients help minimize battery drain on wireless VoIP phones and mobile devices.

Future-Proof Investment for UAE Organizations

Investing in the Cisco Meraki MR57 represents a strategic decision that positions organizations in Abu Dhabi for future growth and technological advancement. The access point’s support for the latest wireless standards and emerging technologies ensures that it will continue to deliver value as wireless requirements evolve. The 6 GHz support is particularly important as more devices begin to utilize this spectrum, providing organizations with access to clean, interference-free channels that will become increasingly valuable over time.

The cloud-managed architecture ensures that the MR57 remains current with the latest features and security updates through automatic firmware updates delivered seamlessly over the web. This approach eliminates the need for manual software updates and ensures that security patches are applied promptly, reducing the risk of security vulnerabilities. New features and enhancements are delivered continuously, ensuring that organizations in Dubai benefit from ongoing innovation without requiring hardware replacements.

The scalable architecture of the Meraki platform makes it easy to expand wireless networks as organizations grow. Whether deploying additional access points in existing locations or expanding to new facilities across the UAE, the centralized cloud management platform provides consistent configuration and monitoring capabilities. This scalability is particularly valuable for growing businesses that need to maintain consistent wireless performance and security standards across multiple locations.

Specifications:

• Radios: 2.4 GHz 802.11b/g/n/ax client access radio, 5 GHz 802.11a/n/ac/ax client access radio, 6 GHz 802.11ax client access radio, 2.4 GHz, 5 GHz, and 6 GHz tri-band Air Marshal WIDS/WIPS spectrum analysis & location analytics radio, 2.4 GHz Bluetooth Low Energy radio with beacon and scanning support
• Antenna: Integrated omni-directional antennas (4.5 dBi gain at 2.4 GHz, 5.5 dBi gain at 5 GHz, and 5.5 dBi gain at 6GHz)
• 11ax Capabilities: DL-OFDMA, TWT support, BSS coloring, 4 x 4 multiple input, multiple output (MIMO) with four spatial streams on 6 GHz, 4 x 4 multiple input, multiple output (MIMO) with four spatial streams on 5 GHz, 4 x 4 multiple input, multiple output (MIMO) with four spatial streams on 2.4 GHz
• Power: Power over Ethernet: 42.5 – 57V (PoE+ and 802.3bt compliant), Alternative 54V DC input via DC adapter, Power consumption: 30W to 40W (802.3bt), Minimum power requirement: 30W (PoE+)
• Interfaces: 2x 100/1000/2.5G/5G BASE-T Ethernet (RJ45), 1x DC power connector (5.5 mm x 2.5 mm, center positive)
• Mounting: All standard mounting hardware included (AIR-AP-BRACKET-2), Desktop, ceiling, and wall mount capable, Ceiling tile rail (9/16, 15/16, or 1 ½” flush or recessed rails), assorted cable junction boxes
• Physical Security: Kensington lock slot, Concealed mount plate with anti-tamper cable bay
• Maximum Data Rates: Up to 4,804 Mbps (6 GHz), Up to 2,402 Mbps (5 GHz), Up to 574 Mbps (2.4 GHz)
• Aggregate Frame Rate: 7.78 Gbps tri-radio aggregate frame rate
• Channel Support: 20 and 40 MHz channels (802.11n); 20, 40, and 80 MHz channels (802.11ac Wave 2); 20, 40, and 80 MHz channels (802.11ax)
• Advanced Features: Up to 1024-QAM on all three bands, Packet aggregation, Maximal ratio combining (MRC) & beamforming, SU-MIMO, UL and DL MU-MIMO support
