Description

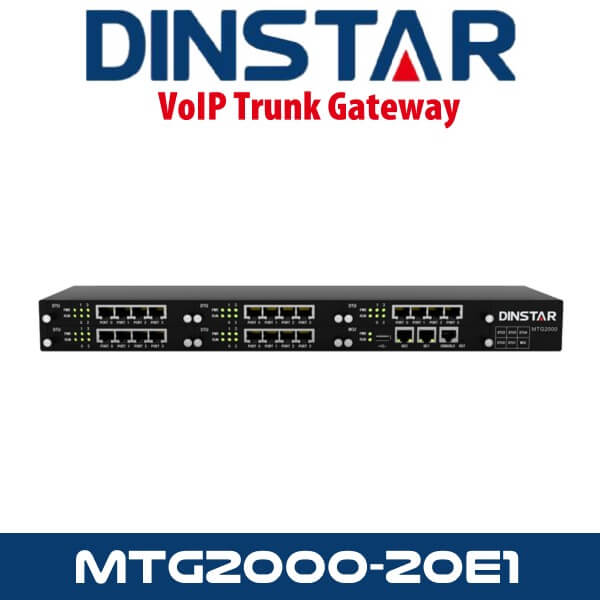

Dinstar MTG2000-20E1 Carrier-grade Digital VoIP Gateway Dubai

The Dinstar MTG2000-20E1 Dubai is a high-performance, carrier-grade, and intelligent Digital VoIP Gateway engineered with 20 E1/T1 interfaces to deliver superior VoIP and FoIP capabilities, complemented by advanced value-added functionalities such as modem passthrough, voice recognition, and enhanced system intelligence. Designed for exceptional reliability, scalability, and simplified management, it offers a highly efficient, flexible, and future-oriented communication platform suitable for demanding business environments. With broad support for multiple signaling protocols, the MTG2000-20E1 ensures seamless integration between SIP networks and traditional telephony infrastructures including ISDN PRI, SS7, and other legacy trunking systems, enabling smooth interoperability and optimal trunk resource utilization while consistently maintaining excellent voice quality. Further strengthened by extensive codec support, secure signaling encryption, and sophisticated voice processing mechanisms, the Dinstar MTG2000-20E1 Dubai stands as a robust, feature-rich, and intelligent solution ideal for large enterprises, contact centers, service providers, and telecom operators seeking dependable and high-capacity voice gateway performance.

Features

Scalable Digital VoIP Gateway for Service Providers

• 20 E1/T1 in 1U chassis
• Up to 600 simultaneous calls
• Redundancy Dual MCU unit

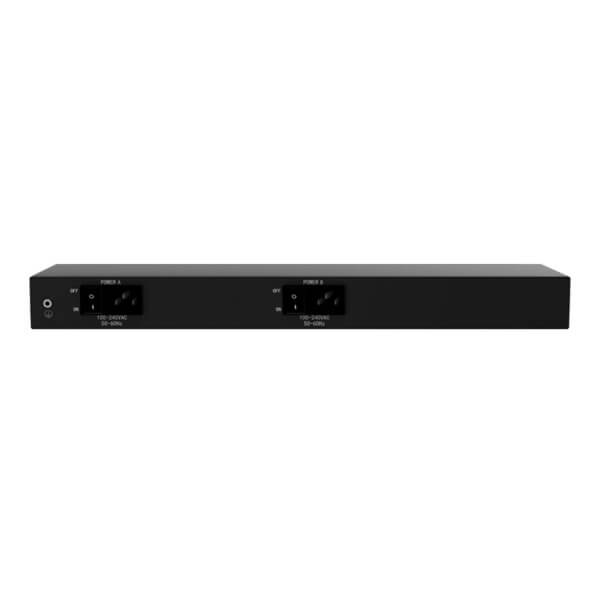

• Dual Power Supplies
• Flexible routing
• Multiple SIP trunks
• Fully compatible with mainstream VoIP platforms

Rich Experiences on PSTN Protocols

• ISDN PRI
• ISDN SS7, SS7 links redundancy
• R2 MFC
• T.38 and Pass-through fax
• Support modem and POS machines
• More than 10-year experiences to integrate with a wide range of Legacy PBXs / Service providers’ PSTN networks

Easy Management

• Intuitive Web interface
• Support SNMP
• Automated provisioning
• Dinstar Cloud Management System
• Configuration Backup & Restore
• Advanced Debug tools

Technical Highlights

• 20 E1s/T1s, RJ48 interface
• Codecs:G.711a/μ law,G.723.1, G.729A/B, iLBC 13k/15k,AMR
• Dual Power Supplies
• Silence Suppression
• 2 GE
• Comfort Noise
• SIP v2.0
• Voice Activity Detection
• SIP-T,RFC3372, RFC3204, RFC3398
• Echo Cancellation (G.168),with up to 128ms
• SIP Trunk Work Mode: Peer/Access
• Adaptive Dynamic Buffer
• SIP/IMS Registration :with up to 256 SIP Accounts
• Voice, Fax Gain Control
• NAT: Dynamic NAT, Rport
• FAX:T.38 and Pass-through
• Flexible Route Methods: PSTN-PSTN, PSTN-IP, IP-PSTN
• Support Modem/POS
• Intelligent Routing Rules
• DTMF Mode: RFC2833/SIP Info/In-band
• Call Routing base on Time
• Clear Channel/Clear Mode
• Call Routing base on Caller/Called Prefixes
• ISDN PRI:
• 256 Route Rules for each Direction
• Signal 7/SS7: ITU-T, ANSI, ITU-CHINA, MTP1/MTP2/MTP3, TUP/ISUP
• Caller and Called Number Manipulation
• R2 MFC
• Local/Transparent Ring Back Tone
• Web GUI Configuration
• Overlapping Dialing
• Data Backup/Restore
• Dialing Rules, with up to 2000
• PSTN Call Statistics
• PSTN group by E1 port or E1 Timeslot
• SIP Trunk Call Statistics
• IP Trunk Group Configuration
• Firmware Upgrade via TFTP/Web
• Voice Codecs Group
• SNMP v1/v2/v3
• Caller and Called Number White Lists
• Network Capture
• Caller and Called Number Black Lists
• Syslog: Debug, Info, Error, Warning , Notice
• Access Rule Lists
• Call History Records via Syslog
• IP Trunk Priority
• NTP Synchronization
• Radius
• Centralized Management System
