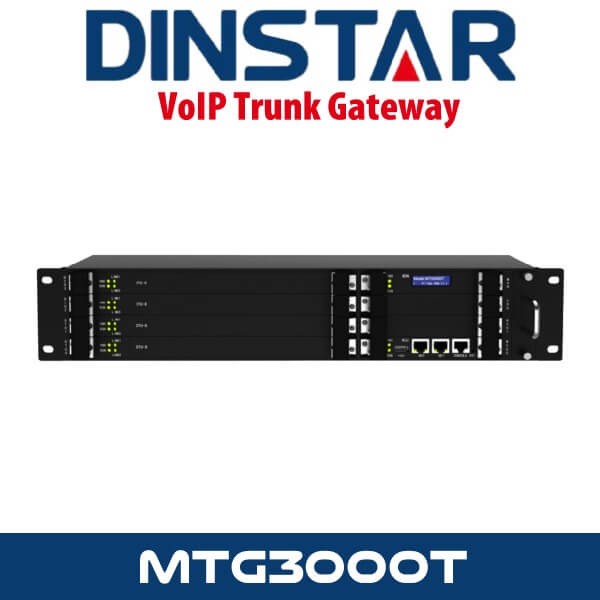

Dinstar MTG3000T High Density Trancoding Gateway Dubai

The Dinstar MTG3000T Dubai is a powerful, versatile, and high-performance transcoding gateway designed to manage demanding voice networks, supporting up to 1,568 concurrent transcoding sessions with exceptional efficiency. It seamlessly converts multiple channels of voice data across a wide spectrum of commonly used codecs such as G.711A/U, G.723.1, G.729A/B, iLBC, G.726, and AMR, enabling smooth and uninterrupted IP-to-IP communication between diverse systems. By effectively bridging codec and capability differences within complex telecommunications environments, the MTG3000T delivers reliable, stable, and consistent performance, making it a preferred solution for organizations that require scalable, robust, and flexible voice transcoding operations.

Features

High Capacity Transcoding Gateway

• Transcoding from IP to IP
• Up to 2048 VoIP Sessions
• Dual Power Supplies
• Scalable by 4 DTUs Boards
• Multiple SIP Trunks
• Fully Compatible with Mainstream VoIP Platforms

Rich Experiences on PSTN Protocols

• 2U Size
• T.38 and Pass-through fax
• Support modem and POS machines
• Flexible dialling rules, thus adapting to different requirements of different environments.
• More than 10-year experiences to integrate with a wide range of Legacy PBXs/Service providers’ PSTN networks

Easy Management

• Intuitive Web interface
• Support SNMP
• Automated provisioning
• Dinstar Cloud Management System
• Configuration Backup & Restore
• Advanced Debug tools

Technical Highlights

• Up to 4 Digital Processing Unit (DTU)
• SIP Trunk Groups
• 2 GE ports
• 256 SIP trunks
• Redundant Power Supply
• Outbound Proxy supported
• G.711—G.711: 2048 sessions
• Maximum 256 SIP accounts
• G.711—G.729: 1568 sessions
• Cloud based management system
• G.711—G.723: 1344 sessions
• Web GUI management
• G.711—G.726: 2048 sessions
• SNMP
• G.711—iLBC: 960 sessions
• Firmware Upgrade via TFTP/FTP/HTTP
• G.711— AMR: 832 sessions
• Support configuration backup/restore
• G.723—G.729: 896 sessions
• Local maintenance via console
• SIP, SIP-T
• Call trace/syslog
• SIP Trunk Work Mode: Peer/Access
• Call test
• SIP/IMS Registration: with up to 256 SIP Accounts
• Network capture
• NAT: Dynamic NAT, Rport
• Signaling hunter
• Caller/Called Number Black lists
• Voice codecs: G.711a/μ law,G.723.1,G.729A/B, iLBC, AMR
• Caller/Called Number White lists
• FAX: T.38 and Pass-through
• IP access rule list
• Support Modem/POS
