Description

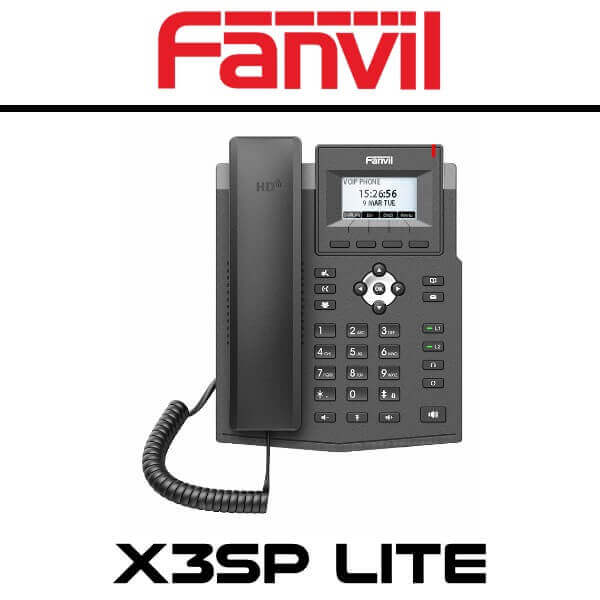

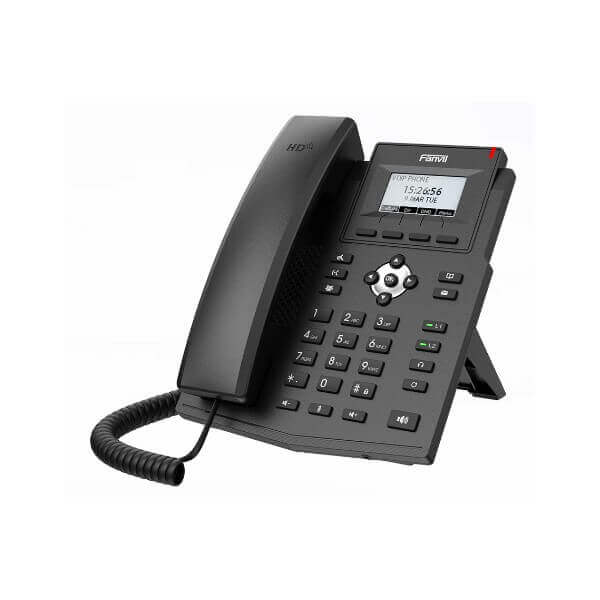

Fanvil X3SP Lite Entry Level IP Phone for Advanced Communication Features for Businesses
The Fanvil X3SP Lite incorporates a comprehensive suite of communication features that address the diverse needs of modern business operations in Dubai. The device supports dual SIP lines, enabling users to manage multiple calls simultaneously while maintaining clear separation between different communication channels. This capability proves particularly valuable for businesses that need to handle both internal communications and external customer interactions through a single device.
The integrated 6-way audio conferencing functionality transforms the X3SP Lite into a powerful collaboration tool that facilitates group discussions and team meetings without requiring additional equipment or software. This feature becomes especially important for organizations operating across multiple locations in the UAE, as it enables seamless communication between teams in Dubai, Abu Dhabi, and other emirates. The conference calling capability supports both scheduled meetings and spontaneous discussions, providing the flexibility that modern business operations demand.
HD audio technology represents another significant advantage of the Fanvil X3SP Lite, delivering crystal-clear voice quality that enhances communication effectiveness and reduces misunderstandings. The device supports wideband audio codecs including G.722 and Opus, ensuring optimal voice quality across various network conditions. This attention to audio quality becomes particularly important in Dubai’s multicultural business environment, where clear communication across different languages and accents is essential for successful operations.
The phone’s support for Electronic Hook Switch (EHS) headsets adds another layer of functionality, enabling hands-free operation that improves productivity and comfort during extended calling sessions. This feature proves especially valuable for customer service representatives, sales teams, and other professionals who spend significant portions of their workday engaged in phone conversations. The seamless integration with wireless headsets provides the mobility and flexibility that modern work environments require.
Network Integration and Connectivity Solutions
The Fanvil X3SP Lite’s network capabilities are designed to integrate seamlessly with existing IT infrastructure while providing the flexibility to adapt to future requirements. The device features dual Ethernet ports that support both network connectivity and PC passthrough functionality, eliminating the need for additional network switches and reducing cable management complexity. This design consideration proves particularly valuable in Dubai’s modern office environments, where desk space optimization and clean aesthetics are important considerations.
Power over Ethernet (PoE) support represents a significant advantage for organizations seeking to simplify their communication infrastructure deployment. The X3SP Lite can receive both power and data through a single Ethernet cable, reducing installation complexity and eliminating the need for separate power adapters at each desk location. This capability not only simplifies initial deployment but also enhances reliability by reducing the number of potential failure points in the system.
The phone’s comprehensive protocol support ensures compatibility with a wide range of communication platforms and service providers operating in the UAE market. Support for SIP 2.0 over UDP/TCP/TLS provides secure and reliable communication, while additional protocols including SRTP, HTTPS, and various VPN options ensure that sensitive business communications remain protected. This security focus aligns with the stringent data protection requirements that many organizations in Dubai must meet.
Quality of Service (QoS) capabilities enable network administrators to prioritize voice traffic, ensuring consistent call quality even during periods of high network utilization. This feature becomes particularly important for organizations with complex network infrastructures or those operating in shared network environments. The ability to configure VLAN support further enhances network segmentation and security capabilities.
User Experience and Interface Design
The Fanvil X3SP Lite’s user interface design prioritizes simplicity and efficiency, enabling users to access advanced features without requiring extensive training or technical expertise. The 2.3-inch dot-matrix display provides clear visibility of call information, contact details, and system status, while the backlit design ensures readability in various lighting conditions commonly found in Dubai office environments.
The phone’s keypad layout follows intuitive design principles, with clearly labeled function keys that provide direct access to frequently used features. Programmable soft keys enable users to customize the interface according to their specific workflow requirements, while dedicated navigation keys simplify menu navigation and feature access. This attention to user experience design reduces the learning curve associated with new technology adoption and enhances overall productivity.
Local phonebook functionality supports up to 1000 entries, providing ample storage for contact information while enabling quick access to frequently called numbers. The device also supports remote phonebook integration through XML and LDAP protocols, enabling centralized contact management across the organization. This capability proves particularly valuable for larger organizations operating multiple locations across the UAE.
Call log functionality maintains detailed records of incoming, outgoing, and missed calls, supporting up to 600 entries that help users track communication patterns and follow up on important conversations. The comprehensive call history includes timestamps, duration information, and caller identification details, providing valuable insights for customer relationship management and business analysis purposes.
Management and Deployment Capabilities
The Fanvil X3SP Lite incorporates advanced management features that simplify deployment and ongoing administration for IT teams responsible for communication infrastructure in Dubai organizations. Auto-provisioning capabilities support multiple protocols including FTP, TFTP, HTTP, HTTPS, and DHCP Option 66, enabling automated configuration deployment across large installations. This functionality significantly reduces the time and effort required for initial setup while ensuring consistent configuration across all devices.
Web-based management interfaces provide administrators with comprehensive control over device settings and functionality without requiring specialized software or training. The intuitive management portal enables configuration of network settings, user preferences, security parameters, and feature activation through a standard web browser. This approach simplifies administration while providing the flexibility to manage devices remotely when necessary.
Configuration export and import functionality enables administrators to replicate settings across multiple devices, ensuring consistency while reducing configuration time. This feature proves especially valuable during large-scale deployments or when replacing devices, as it eliminates the need to manually configure each device individually.
Integration with Business Environments
The Fanvil X3SP Lite’s design and functionality align perfectly with the diverse business environments found throughout Dubai and the broader UAE region. The device’s compact footprint and professional appearance complement modern office aesthetics while providing the functionality required for effective business communication. Multiple installation options, including desktop and wall-mount configurations, provide flexibility to accommodate various workspace layouts and preferences.
Environmental specifications ensure reliable operation in the climate-controlled office environments typical of Dubai’s commercial buildings. The device operates effectively within temperature ranges of 0 to 45 degrees Celsius and humidity levels of 10 to 95 percent, providing consistent performance across various environmental conditions. These specifications ensure reliable operation throughout the year, regardless of seasonal variations or building-specific environmental factors.
The phone’s energy-efficient design aligns with the sustainability initiatives that many Dubai organizations have adopted as part of their corporate responsibility programs. Low power consumption reduces operational costs while supporting environmental conservation efforts. When combined with PoE deployment, the overall energy footprint of the communication system can be optimized through centralized power management and monitoring.
Compatibility with major communication platforms including Asterisk, Broadsoft, 3CX, and others ensures that organizations can integrate the Fanvil X3SP Lite with their preferred communication infrastructure without requiring significant changes to existing systems. This compatibility extends to cloud-based communication services that are increasingly popular among Dubai businesses seeking to leverage the flexibility and scalability advantages of cloud computing.
Security and Compliance Features
Security considerations play a crucial role in communication system selection for organizations operating in Dubai’s regulated business environment. The Fanvil X3SP Lite incorporates comprehensive security features that protect against various threats while ensuring compliance with industry standards and regulatory requirements. Support for SRTP (Secure Real-time Transport Protocol) ensures that voice communications remain encrypted during transmission, protecting sensitive business information from interception or eavesdropping.
Transport Layer Security (TLS) support provides additional protection for signaling communications, ensuring that call setup and control information remains secure throughout the communication process. This multi-layered security approach addresses the various attack vectors that could potentially compromise communication systems, providing peace of mind for organizations handling sensitive information.
Network access control through 802.1x authentication ensures that only authorized devices can access the communication network, preventing unauthorized access and potential security breaches. This capability integrates with existing network security infrastructure, enabling centralized authentication and access control management. VLAN support further enhances security by enabling network segmentation that isolates voice traffic from other network communications.
VPN support through L2TP and OpenVPN protocols enables secure communication across public networks, facilitating remote work scenarios and multi-location connectivity. This capability has become increasingly important as organizations in Dubai adapt to flexible work arrangements and distributed team structures. The ability to maintain secure communication regardless of location ensures business continuity while protecting sensitive information.
Technical Specifications:
Display & Interface
– Main LCD: 2.3-inch (132×64) Dot-matrix screen with backlight
– Keypad: 34 keys including 4 soft-keys, 9 function keys, 2 line keys with LED indicators
– 4 Navigation keys, 1 OK key, 12 Standard Phone Digits keys
– 3 Volume Control keys (Up/Down/Mute for Microphone)
– 1 Hands-free key
Communication Features
– SIP Lines: 2 SIP lines with SIP hotspot support
– Conference: Local 6-way audio conference
– Phonebook: Local (1000 entries), Remote (XML/LDAP, 1000 entries)
– Call Logs: In/Out/Missed (600 entries)
– Voice Message Waiting Indication (VMWI)
– Programmable DSS/Soft keys
– Network Time Synchronization
– EHS headset support (Poly APD-80, Fanvil EHS20)
– Server-based call recording support
Audio Specifications
– HD Voice: 0-7KHz frequency response
– HAC (Hearing Aid Compatible) handset
– Wideband ADC/DAC: 16KHz sampling rate
– Narrowband Codecs: G.711a/u, G.723.1, G.726, G.729A/B, iLBC
– Wideband Codecs: G.722, Opus
– Full-duplex Acoustic Echo Canceller (AEC)
– Voice Activity Detection (VAD) / Comfort Noise Generation (CNG)
– Background Noise Estimation (BNE) / Noise Reduction (NR)
– Automatic Gain Control (AGC)
– Packet Loss Concealment (PLC)
– Dynamic Adaptive Jitter Buffer
– DTMF: In-band, Out-of-Band (RFC2833/SIP INFO)
– VQM voice quality monitoring
Network & Connectivity
– Ethernet: Dual 10/100 Mbps ports with PC bypass
– IP Support: IPv4/IPv6/IPv4&IPv6
– IP Configuration: Static IP / DHCP / PPPoE
– Network Access Control: 802.1x
– VPN Support: L2TP / OpenVPN
– VLAN support
– LLDP (Link Layer Discovery Protocol)
– Quality of Service (QoS)
– RTP-XR (RFC3611), VQ-RTCPXR (RFC6035)
Security and Protocols
– SIP 2.0 over UDP/TCP/TLS
– RTP/RTCP/SRTP support
– STUN protocol
– DHCP client
– IPv6 support
– PPPoE support
– 802.1x authentication
– 802.1p/Q VLAN tagging
– L2TP VPN
– OpenVPN support
– SNTP/NTP time synchronization
– FTP/TFTP file transfer
– HTTP/HTTPS web interface
– TR-069 remote management
– AES128 & AES256 encryption
Physical Specifications
– Power Consumption: Idle 0.9-1.48W, Peak 2.8-2.98W
– Operating Temperature: 0-45°C
– Operating Humidity: 10-95%
– Installation Options: Desktop Stand, Wall-mounted
– Color: Black
– Device Dimensions (Desktop): 169 x 186.3 x 174.5 mm
– Device Dimensions (Wall-mounted): 169 x 115.6 x 212.5 mm
– Power Input: DC 5V/0.6A
– PoE Power: 1.32-2.09W
Deployment and Management
– Auto-Provisioning: FTP/TFTP/HTTP/HTTPS/DHCP OPT66/SIP PNP/TR-069
– Web Management Portal
– Web-based Packet Dump
– Configuration Export/Import
– Phonebook Import/Export
– Firmware Upgrade capability
– Syslog support
– Platform Compatibility: Asterisk, Broadsoft, 3CX, Metaswitch, Elastix, Avaya
