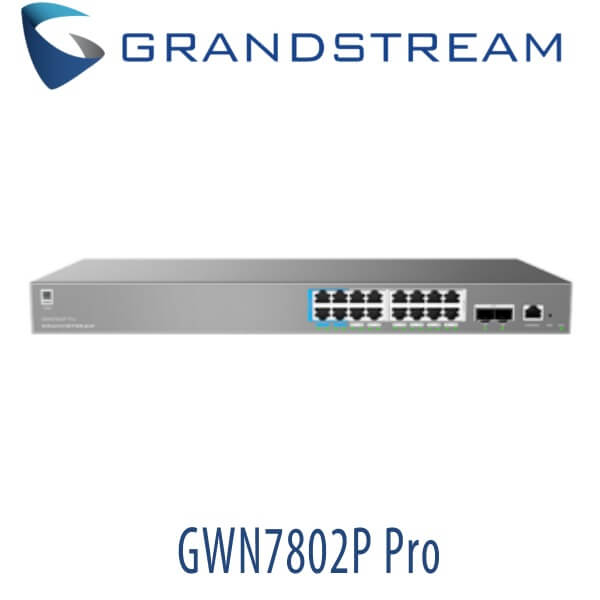

Grandstream GWN7802P Pro – Layer 2++ 16-Port Gigabit PoE++ Managed Switch for Mid-Size UAE Networks

16x Gigabit PoE++ ports • 250W total budget (up to 60W/port) • 2x 10G SFP+ uplinks • 72Gbps switching • Advanced VLAN/QoS/security • GDMS/GWN.Cloud management • Ideal for hotels, offices, clinics & retail in Dubai/Abu Dhabi

The Grandstream GWN7802P Pro is part of the enhanced GWN7800 Pro Series (updated 2025-2026), delivering Layer 2++ performance with double the RAM/CPU, high-speed 10G uplinks, and smart PoE++ power for demanding SME networks. Featuring 16 Gigabit PoE++ ports with a 250W total budget (up to 60W per port on select ports for high-power devices), plus 2x 10G SFP+ uplinks, it’s perfect for powering and connecting Grandstream IP phones, Wi-Fi APs, PTZ cameras, and other endpoints in mid-size UAE setups—like hotels in JBR/Downtown, offices in DIFC/Business Bay, clinics in Al Barsha, or retail chains where high-bandwidth uplinks and reliable PoE are essential.

This switch offers 72Gbps switching capacity, 53.568Mpps forwarding rate, low-latency performance (<4μs), and seamless integration with Grandstream ecosystem features like auto voice VLAN for effortless phone deployments.

The Grandstream GWN7802P Pro is an enterprise Layer 2++ managed PoE++ network switch from the advanced GWN7800 Pro Series, featuring 16 Gigabit Ethernet PoE++ ports (IEEE 802.3af/at/bt compliant, 250W total budget, up to 60W per port on select ports) and 2x 10G SFP+ uplinks for high-speed fiber connectivity. It delivers 72Gbps switching capacity, 53.568Mpps forwarding rate, and ultra-low latency (<4μs) with store-and-forward architecture, supporting jumbo frames up to 10KB. Enhanced with double RAM/CPU compared to standard models, it handles intensive traffic efficiently for demanding SME environments.

Advanced features include 16K VLANs (port/MAC/protocol-based, QinQ, auto voice VLAN for Grandstream phones), QoS with 8 queues and priority scheduling (optimized for VoIP/video), IGMP/MLD Snooping, spanning tree protocols, and link aggregation. Security encompasses ARP Inspection, IP Source Guard, DoS protection, DHCP Snooping, port security, and 802.1X authentication. Management options include embedded web controller, GDMS Networking (GWN.Cloud remote/cloud platform), GWN Manager on-premise, or GWN router integration.

Reliable and rack-mountable (dimensions approx. 440 × 200 × 44 mm, 0–45°C operation), it’s suited for UAE’s warm climates and mid-size server closets in offices, hotels, clinics, and retail. TRA-compliant with surge/ESD protection and rack kits included—ideal for powering Grandstream ecosystem devices with high-bandwidth uplinks.

Key Highlights & UAE Performance Edge (2026)

Ports & Speed: 16x Gigabit RJ45 PoE++ (IEEE 802.3af/at/bt support), 2x 10G SFP+ uplinks; 72Gbps switching, 53.568Mpps forwarding.

PoE Power: 250W total budget with smart dynamic allocation (up to 60W per port on PoE++ capable ports, 30W standard) — powers 10–16+ devices like high-power APs/cameras without issues.

Advanced Layer 2++ Features: 16K VLANs (port/MAC/protocol/QinQ, voice VLAN auto-detection), QoS (8 queues, priority for VoIP/video), IGMP/MLD Snooping, STP/RSTP/MSTP, link aggregation (up to 8 groups).

Security: ARP Inspection, IP Source Guard, DoS protection, port security, DHCP Snooping, 802.1X/MAC auth.

Management: Embedded controller, GDMS Networking (GWN.Cloud for remote multi-site), GWN Manager on-premise, web UI/CLI.

Build: Rack-mount (kits included), 0–45°C operation, fan-cooled — reliable in UAE warm server rooms.

Extras: Jumbo frames (10KB), surge/ESD protection, console port.

Why UAE Businesses Choose GWN7802P Pro in 2026

1. Pro Series Upgrades — 10G SFP+ uplinks + boosted hardware for smoother high-traffic/video-heavy networks.
2. Flexible PoE++ — Higher per-port power for demanding devices (e.g., PTZ cameras, advanced APs) in hotels/clinics.
3. Grandstream Optimization — Auto voice VLAN + QoS for clear VoIP and streaming in multi-device environments.
4. Secure Segmentation — Advanced VLAN/security for guest/employee isolation in retail/public spaces.
5. Cloud Oversight — Remote power/port monitoring across UAE locations via GWN.Cloud.
6. Scalable Reliability — Fits mid-size racks with fast 10G backhaul for growing teams.

Common UAE Deployment Scenarios

• Hotels & serviced apartments (meeting rooms, guest areas).
• Mid-size offices/co-working (Dubai Internet City, Media City).
• Medical clinics (multi-room PoE for phones/cameras).
• Retail showrooms/pharmacies (large spaces with high-power endpoints).
• Training centers & branches (Sheikh Zayed Road, Knowledge Village).

What’s in the Box?

• GWN7802P Pro switch
• Rack-mount kits + screws
• Power cord + ground cable
• Rubber feet
• Quick guide (English; Arabic via Grandstream)

Installation Tips: Rack-mount with ears, use Cat6a for PoE/Gigabit (100m max), enable LLDP-MED/voice VLAN, set QoS for Grandstream priority, configure via GDMS.
