Description

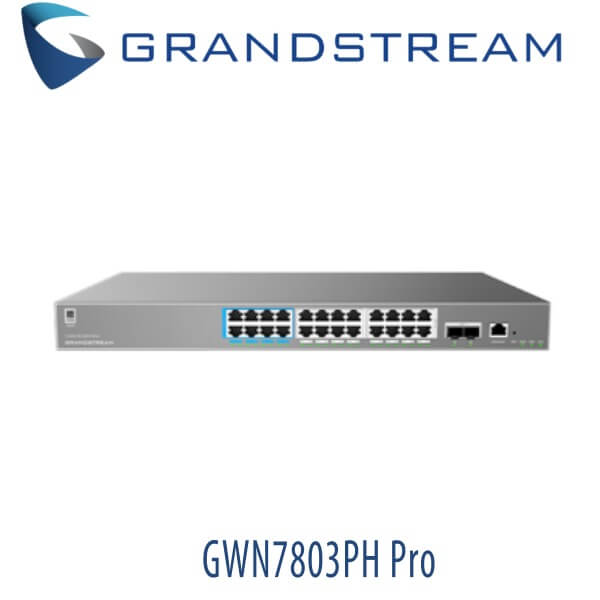

Grandstream GWN7803PH Pro – Layer 2++ 24-Port Gigabit PoE++ Managed Switch for High-Power UAE Networks

24x Gigabit PoE++ ports • 400W total budget (up to 60W/port) • 2x 10G SFP+ uplinks • 88Gbps switching • Advanced VLAN/QoS/security • GDMS/GWN.Cloud management • Ideal for hotels, corporate offices, clinics, retail & surveillance in Dubai/Abu Dhabi

The Grandstream GWN7803PH Pro is a premium model in the GWN7800 Pro Series (released late 2025/early 2026), offering Layer 2++ management with doubled RAM/CPU, high-speed 10G uplinks, and robust PoE++ power for intensive deployments. Featuring 24 Gigabit PoE++ ports (IEEE 802.3af/at/bt compliant, 400W total budget, up to 60W per port), plus 2x 10G SFP+ uplinks, it’s built for powering demanding Grandstream devices like high-power Wi-Fi APs, PTZ IP cameras, IP phones, door stations, and other endpoints in mid-to-large UAE setups—such as hotel chains in Palm Jumeirah/Downtown, corporate HQs in DIFC/Sheikh Zayed Road, medical facilities, large retail groups, or surveillance-heavy sites requiring extra power headroom.

With 88Gbps switching capacity (44Gbps non-blocking throughput), 65.472Mpps forwarding rate, and low-latency performance (<4μs), it delivers seamless VoIP, 4K video, and data handling with full Grandstream ecosystem support via auto voice VLAN.

The Grandstream GWN7803PH Pro is an enterprise Layer 2++ managed PoE++ network switch from the GWN7800 Pro Series, featuring 24 Gigabit Ethernet PoE++ ports (IEEE 802.3af/at/bt compliant, 400W total budget, up to 60W per port) and 2x 10G SFP+ uplinks for superior high-speed connectivity. It delivers 88Gbps switching capacity (44Gbps non-blocking throughput), 65.472Mpps forwarding rate, and low-latency (<4μs) operation with store-and-forward architecture, supporting jumbo frames up to 12288 bytes. Enhanced with double RAM/CPU versus standard models, it excels in high-density, power-intensive SME environments.

Advanced capabilities include 4K+ VLANs (port/MAC/protocol-based, QinQ, auto voice VLAN for Grandstream phones), QoS with 8 queues and priority scheduling (optimized for VoIP/video), IGMP/MLD Snooping, spanning tree protocols, and link aggregation. Security features encompass ARP Inspection, IP Source Guard, DoS protection, DHCP Snooping, port security, and 802.1X authentication. Management is versatile via embedded web controller, GDMS Networking (GWN.Cloud remote/cloud platform), GWN Manager on-premise, or GWN router integration.

Built for reliability in UAE conditions (0–45°C operation, fan-cooled), it’s rack-mountable with surge/ESD protection and kits included—perfect for hotels, offices, clinics, retail, and surveillance setups needing high PoE budgets and fast uplinks. TRA-compliant and fully optimized for Grandstream deployments.

Key Highlights & UAE Performance Edge (2026)

1.  Ports & Speed: 24x Gigabit RJ45 PoE++ (IEEE 802.3af/at/bt), 2x 10G SFP+ uplinks; 88Gbps switching, 65.472Mpps forwarding.

2. PoE Power: 400W total budget with smart dynamic allocation (up to 60W per port) — powers 20–24+ high-demand devices (e.g., PTZ cameras ~25–50W, advanced APs) without issues.

3.  Advanced Layer 2++ Features: 4K+ VLANs (port/MAC/protocol/QinQ, auto voice VLAN), QoS (8 queues, priority for VoIP/video), IGMP/MLD Snooping, STP/RSTP/MSTP, link aggregation.

4.  Security: ARP Inspection, IP Source Guard, DoS protection, port security, DHCP Snooping, 802.1X/MAC auth.

5.  Management: Embedded controller, GDMS Networking (GWN.Cloud remote multi-site), GWN Manager on-premise, web UI/CLI.

6.  Build: Rack-mount (kits included), 0–45°C operation, fan-cooled — reliable in UAE warm/dusty server rooms.

7.  Extras: Jumbo frames (12288 bytes), surge/ESD protection, console port.

Why UAE High-Density Networks Choose GWN7803PH Pro in 2026

1. High-Power PoE++ — 400W/60W per port supports power-hungry devices in surveillance/hotels/clinics.
2. Pro Series Boost — 10G SFP+ uplinks + enhanced hardware for bandwidth-intensive/video-heavy setups.
3. Grandstream Integration — Auto voice VLAN + QoS for flawless VoIP/video ecosystem performance.
4. Advanced Security — Protects against threats in public-facing retail/public venues.
5. Cloud Management — Remote power/port/firmware oversight across UAE locations via GWN.Cloud.
6. UAE Durability — Handles heat/dust, fits standard racks for quick installs.

Common UAE Deployment Scenarios

• Hotels/resorts (guest areas, meeting rooms, outdoor cameras).
• Corporate offices & campuses (DIFC, Business Bay, high-density PoE).
• Medical clinics & hospitals (multi-room phones/cameras/door stations).
• Retail chains & showrooms (large-scale endpoints).
• Surveillance & industrial sites (PTZ cameras, remote branches).

What’s in the Box?

• GWN7803PH Pro switch
• Rack-mount kits + screws
• Power cord + ground cable
• Rubber feet
• Quick guide (English; Arabic via Grandstream)

Installation Tips: Rack-mount with ears, use Cat6a for PoE/Gigabit (100m max), enable LLDP-MED/voice VLAN, prioritize QoS for Grandstream traffic, configure via GDMS for multi-site.

Buy Grandstream GWN7803PH Pro in Dubai/UAE In stock at Dubai warehouses—same-day collection/dispatch in Dubai, next-day to Abu Dhabi/Sharjah, fast across Emirates.

Contact

Reply “quote GWN7803PH Pro qty X” or “PoE switch consultation Dubai” for pricing, stock, bundles (e.g., with GWN APs/phones/cameras), and setup support.

Your trusted Grandstream partner in the UAE—powering high-demand, high-performance networks!
