Description

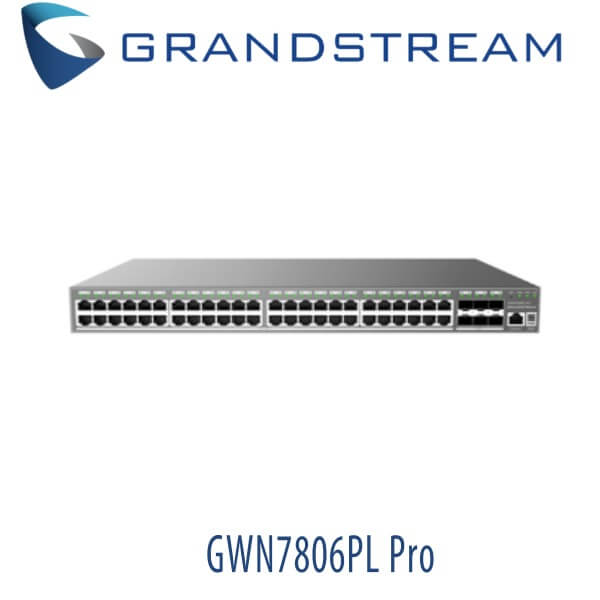

Grandstream GWN7806PL Pro – Layer 2++ 48-Port Gigabit PoE+ Managed Switch for Large-Scale UAE Networks

48x Gigabit PoE+ ports • 400W total budget (30W/port) • 6x 10G SFP+ uplinks • 216Gbps switching • Advanced VLAN/QoS/security • GDMS/GWN.Cloud management • Ideal for large hotels, corporate campuses, warehouses & retail in Dubai/Abu Dhabi

The Grandstream GWN7806PL Pro is a flagship model in the GWN7800 Pro Series (launched late 2025/early 2026), delivering enterprise Layer 2++ performance with doubled RAM/CPU, extensive 10G SFP+ uplinks, and efficient PoE+ power for high-density deployments. Featuring 48 Gigabit PoE+ ports (IEEE 802.3af/at, 400W total budget, 30W per port), plus 6x 10G SFP+ uplinks for massive backhaul capacity, it’s engineered for powering and connecting large numbers of Grandstream IP phones, Wi-Fi APs, IP cameras, and other endpoints in expansive UAE environments—such as hotel resorts in Palm Jumeirah/JBR, corporate campuses in DIFC/Sheikh Zayed Road, large warehouses in Jebel Ali, retail malls, or university facilities requiring scalable power and ultra-high bandwidth.

With 216Gbps switching capacity (108Gbps non-blocking throughput), 160.704Mpps forwarding rate, low-latency operation (<4μs), and an 8.4Mb packet buffer, it ensures seamless handling of VoIP, 4K video streams, and heavy data traffic with full Grandstream ecosystem optimization via auto voice VLAN.

The Grandstream GWN7806PL Pro is an enterprise Layer 2++ managed PoE+ network switch from the GWN7800 Pro Series, featuring 48 Gigabit Ethernet PoE+ ports (IEEE 802.3af/at, 400W total budget, 30W max per port) and 6x 10G SFP+ uplinks for exceptional high-speed connectivity. It delivers 216Gbps switching capacity (108Gbps non-blocking throughput), 160.704Mpps forwarding rate, and low-latency (<4μs) performance with store-and-forward architecture, supporting jumbo frames up to 12288 bytes and an 8.4Mb packet buffer. Enhanced with double RAM/CPU compared to standard models, it handles intensive traffic for large-scale SME and enterprise networks efficiently.

Advanced features include 4K+ VLANs (port/MAC/protocol-based, QinQ, auto voice VLAN for Grandstream phones), QoS with 8 queues and priority scheduling (optimized for VoIP/video), IGMP/MLD Snooping, spanning tree protocols, and link aggregation (up to 32 groups). Security encompasses ARP Inspection, IP Source Guard, DoS protection, DHCP Snooping, port security, and 802.1X authentication. Management is comprehensive via embedded web controller, GDMS Networking (GWN.Cloud remote/cloud platform), GWN Manager on-premise, or GWN router integration.

Reliable for UAE conditions (0–45°C operation, fan-cooled), it’s rack-mountable with surge/ESD protection and kits included—ideal for large hotels, corporate campuses, warehouses, retail malls, and facilities needing extensive PoE powering and multi-10G uplinks. TRA-compliant and fully optimized for Grandstream deployments.

Key Highlights & UAE Performance Edge (2026)

• Ports & Speed: 48x Gigabit RJ45 PoE+ (IEEE 802.3af/at), 6x 10G SFP+ uplinks; 216Gbps switching, 160.704Mpps forwarding.
• PoE Power: 400W total budget with smart dynamic allocation (30W per port max) — powers 25–40+ Grandstream phones (10–15W), cameras, APs reliably in dense setups.
• Advanced Layer 2++ Features: 4K+ VLANs (port/MAC/protocol/QinQ, auto voice VLAN), QoS (8 queues, priority for VoIP/video), IGMP/MLD Snooping, STP/RSTP/MSTP, link aggregation (up to 32 groups).
• Security: ARP Inspection, IP Source Guard, DoS protection, port security, DHCP Snooping, 802.1X/MAC auth.
• Management: Embedded controller, GDMS Networking (GWN.Cloud remote multi-site), GWN Manager on-premise, web UI/CLI.
• Build: Rack-mount (kits included), 0–45°C operation, fan-cooled — durable in UAE warm/dusty server rooms.
• Extras: Jumbo frames (12288 bytes), surge/ESD protection, console port.

Why UAE Large-Scale Networks Choose GWN7806PL Pro in 2026

1. Massive Scalability — 48 ports + 6x 10G uplinks for high-density, high-bandwidth networks in hotels/campuses.
2. Efficient PoE+ — 400W supports standard Grandstream devices across large floors or buildings.
3. Grandstream Optimization — Auto voice VLAN + QoS for crystal-clear VoIP/video in multi-device ecosystems.
4. Robust Security — Protects against threats in public-facing retail/mall environments.
5. Cloud Management — Remote power/port/firmware monitoring across UAE properties via GWN.Cloud.
6. UAE Reliability — Handles heat/dust, fits standard racks for enterprise-grade installs.

Common UAE Deployment Scenarios

• Large hotels/resorts (guest rooms, conference areas, outdoor Wi-Fi).
• Corporate campuses & offices (DIFC, Business Bay, high-density PoE).
• Warehouses & industrial sites (Jebel Ali, Dubai South).
• Retail malls & chains (Dubai Mall extensions, Yas Mall).
• Universities & training centers (Knowledge Village, large campuses).

What’s in the Box?

• GWN7806PL Pro switch
• Rack-mount kits + screws
• Power cord + ground cable
• Rubber feet
• Quick guide (English; Arabic via Grandstream)

Installation Tips: Rack-mount with ears, use Cat6/Cat6a for PoE/Gigabit (100m max), enable LLDP-MED/voice VLAN, prioritize QoS for Grandstream traffic, configure via GDMS for multi-site control.

Buy Grandstream GWN7806PL Pro in Dubai/UAE In stock at Dubai warehouses—same-day collection/dispatch in Dubai, next-day to Abu Dhabi/Sharjah, fast across Emirates.

Contact

Reply “quote GWN7806PL Pro qty X” or “PoE switch consultation Dubai” for pricing, stock, bundles (e.g., with GWN APs/phones/cameras), and setup support.

Your trusted Grandstream partner in the UAE—powering large-scale, high-performance networks!
