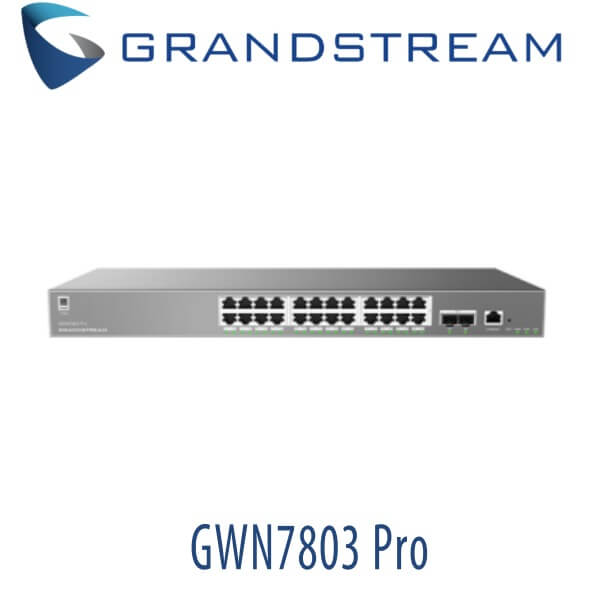

Grandstream GWN7803P Pro – Layer 2++ 24-Port Gigabit PoE+ Managed Switch for Mid-to-Large UAE Networks

24x Gigabit PoE+ ports • 250W total budget (up to 60W/port select) • 2x 10G SFP+ uplinks • 88Gbps switching • Advanced VLAN/QoS/security • GDMS/GWN.Cloud management • Ideal for hotels, corporate offices, clinics & retail chains in Dubai/Abu Dhabi

The Grandstream GWN7803P Pro belongs to the enhanced GWN7800 Pro Series (updated 2025-2026), providing Layer 2++ capabilities with double RAM/CPU, ultra-fast 10G uplinks, and intelligent PoE+ power management for high-density deployments. Equipped with 24 Gigabit PoE+ ports (250W total budget, supporting up to 60W per port on select for high-power devices), plus 2x 10G SFP+ uplinks, it’s designed for powering and connecting Grandstream IP phones, Wi-Fi APs, PTZ cameras, and other endpoints in mid-to-large UAE environments—like hotel chains in Downtown/Palm Jumeirah, corporate HQs in DIFC/Sheikh Zayed Road, medical facilities in Jumeirah, or retail groups where reliable power, high bandwidth, and remote management are critical.

With 88Gbps switching capacity, 65.472Mpps forwarding rate, and low-latency (<4μs), it ensures smooth performance for VoIP, video, and data traffic, plus seamless Grandstream ecosystem integration via auto voice VLAN.

The Grandstream GWN7803P Pro is an enterprise Layer 2++ managed PoE+ network switch from the advanced GWN7800 Pro Series, featuring 24 Gigabit Ethernet PoE+ ports (IEEE 802.3af/at/bt support on select, 250W total budget, up to 60W per port on high-power capable ports) and 2x 10G SFP+ uplinks for superior backhaul performance. It delivers 88Gbps switching capacity, 65.472Mpps forwarding rate, and low-latency (<4μs) operation with store-and-forward architecture, supporting jumbo frames up to 12KB+. Enhanced with double the RAM and CPU versus standard models, it excels in high-density, traffic-intensive SME environments.

Key features include 16K VLANs (port/MAC/protocol-based, QinQ, auto voice VLAN for Grandstream phones), QoS with 8 queues and advanced scheduling (optimized for VoIP/video), IGMP/MLD Snooping, spanning tree protocols, and link aggregation. Security includes ARP Inspection, IP Source Guard, DoS protection, DHCP Snooping, port security, and 802.1X authentication. Management is comprehensive via embedded web controller, GDMS Networking (GWN.Cloud remote/cloud platform), GWN Manager on-premise, or GWN router integration.

Reliable for UAE conditions (0–45°C operation, fan-cooled), it’s rack-mountable (approx. 440 × 200 × 44 mm) with surge/ESD protection and kits included—perfect for mid-to-large offices, hotels, clinics, and retail needing PoE powering and high-speed uplinks. TRA-compliant and fully optimized for Grandstream deployments.

Key Highlights & UAE Performance Edge (2026)

Ports & Speed: 24x Gigabit RJ45 PoE+ (IEEE 802.3af/at/bt support on select), 2x 10G SFP+ uplinks; 88Gbps switching, 65.472Mpps forwarding.

1. PoE Power: 250W total budget with smart dynamic allocation (up to 60W per port on PoE++ capable select ports, 30W standard) — powers 18–24 devices like IP phones (10–15W), cameras, APs without budgeting issues.

2. Advanced Layer 2++ Features: 16K VLANs (port/MAC/protocol/QinQ, auto voice VLAN), QoS (8 queues, priority for VoIP/video), IGMP/MLD Snooping, STP/RSTP/MSTP, link aggregation (up to 32 groups in Pro series).

3. Security: ARP Inspection, IP Source Guard, DoS protection, port security, DHCP Snooping, 802.1X/MAC auth.

4. Management: Embedded controller, GDMS Networking (GWN.Cloud for remote multi-site), GWN Manager on-premise, web UI/CLI.

5. Build: Rack-mount (kits included), 0–45°C operation, fan-cooled — reliable in UAE warm server rooms/closets.

6. Extras: Jumbo frames (12KB+), surge/ESD protection, console port.

Why UAE Mid-to-Large Networks Choose GWN7803P Pro in 2026

1. Pro Series Enhancements — 10G SFP+ uplinks + doubled hardware for high-traffic/video-intensive networks.
2. Flexible PoE+ Power — Higher per-port capability for demanding devices in hotels/clinics.
3. Grandstream Ecosystem Win — Auto voice VLAN + QoS for crystal-clear calls and streaming.
4. Robust Security — Advanced features for guest/employee segmentation in retail/public venues.
5. Cloud Management — Monitor power/ports/firmware remotely across UAE branches via GWN.Cloud.
6. UAE-Ready Durability — Handles warm climates, fits standard racks for quick installs.

Common UAE Deployment Scenarios

• Hotels & resorts (front desk, meeting rooms, guest Wi-Fi backhaul).
• Corporate offices & co-working (Business Bay, DIFC, Media City).
• Medical clinics & facilities (multi-room PoE for phones/cameras).
• Retail groups & showrooms (large spaces with high-power endpoints).
• Training centers & branch offices (Knowledge Village, Al Quoz).

What’s in the Box?

• GWN7803P Pro switch
• Rack-mount kits + screws
• Power cord + ground cable
• Rubber feet
• Quick guide (English; Arabic via Grandstream)

Installation Tips: Rack-mount with included ears, use Cat6/Cat6a for PoE/Gigabit (100m max), enable LLDP-MED/voice VLAN, prioritize QoS for Grandstream traffic, setup via GDMS for multi-site control.
